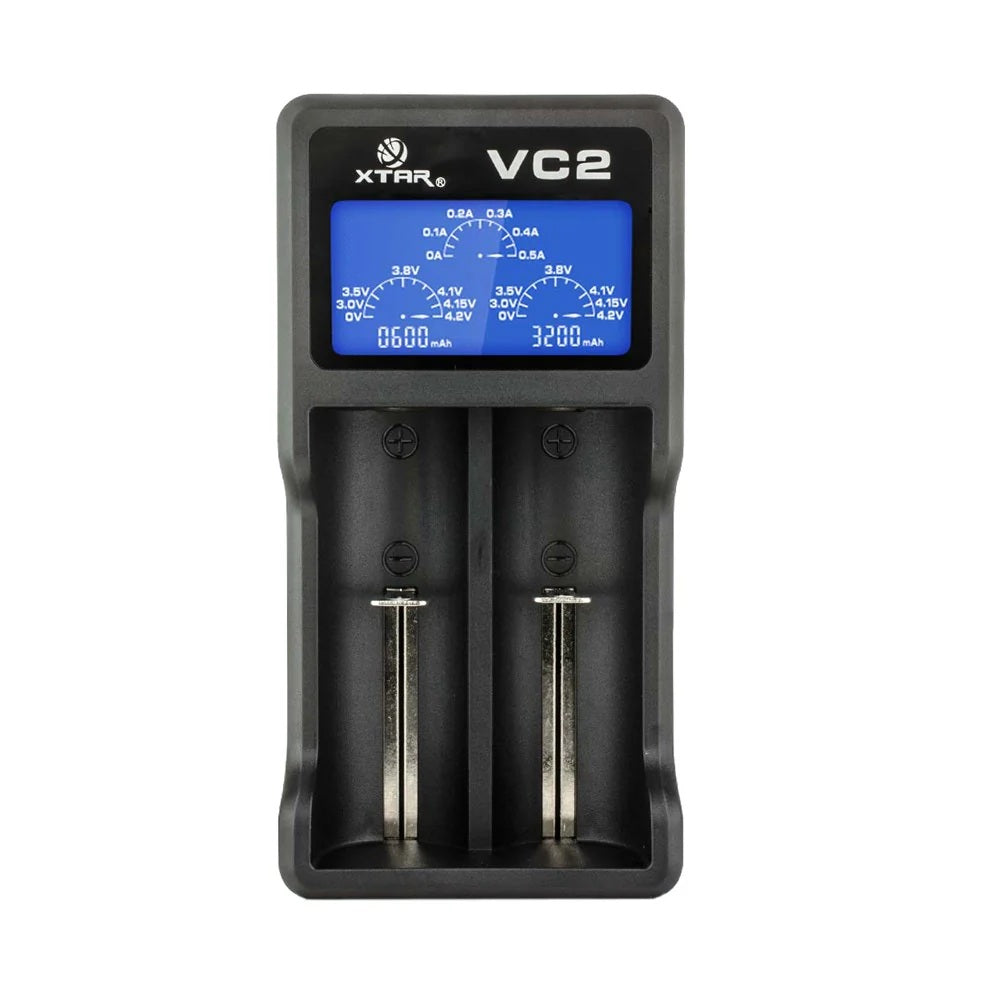

XTAR VC2

XTAR VC2: The Intelligent Li-ion Battery Manager

Know Your Battery’s Real Story.

The XTAR VC2 isn’t just a charger; it’s a diagnostic tool for your batteries. Featuring a unique, tachometer-style LCD display, it gives you real-time insights into your battery’s health, capacity, and charging status. USB-powered and ultra-portable, it’s the perfect companion for your home office or travel kit.

Key Features

• Innovative LCD Display: A high-definition, tachometer-style screen shows you exactly what’s happening. Track your charging current, battery voltage, and charged capacity at a glance.
• Real Capacity Testing: By identifying how much charge the battery actually takes, the VC2 helps you distinguish between high-quality cells and aging or low-quality ones.
• 0V Activation Function: Don’t toss those "dead" batteries just yet. The VC2 can revive many over-discharged batteries, bringing them back to life safely.
• Smart Charging (TC-CC-CV): This three-stage algorithm ensures batteries are charged with precision—prolonging their overall lifespan and ensuring a 100% full charge every time.
• USB Powered Convenience: Use any 5V USB power source—wall adapters, laptops, or power banks—to charge your cells anywhere in the world.

Safety First

We believe a charger should be smart enough to protect itself and you. The VC2 includes:

• Reverse Polarity Protection: If you put the battery in backward, the screen will simply show "Err."
• Short Circuit Protection: Instant cut-off if a fault is detected.
• Heat Dissipation Design: Built with flame-retardant materials and an efficient thermal layout to keep things cool.
• Soft-Start Technology: Prevents sudden current surges that can damage delicate cells.

Broad Compatibility

The VC2 features two independent slots that can handle a wide variety of 3.6V/3.7V Li-ion, IMR, INR, and ICR batteries.

Note: The VC2 is compatible with unprotected 21700 batteries. It may not accommodate some protected 21700 cells due to their increased length.

Technical Specifications

• Input: DC 5.0V / 1000mA
• Max Constant Current: 500mA per slot
• Cut-off Voltage: $4.2V \pm 0.05V$
• Operating Temperature: 0–40°C
• Dimensions: 131mm x 66mm x 33mm
• Net Weight: 109g

What’s in the Box?

1. XTAR VC2 Charger
2. Micro-USB Cable
3. User Manual

Pro Tip: To reach the maximum 0.5A charging speed for both slots simultaneously, we recommend using a USB wall adapter rated for 5V/2.1A or higher. If your power source is weaker, the VC2 will intelligently lower the current to stay safe!
