XTAR VX4
In stock, ready to ship

Pairs well with

Vendor:XTAR

XTAR VX4

$80.00

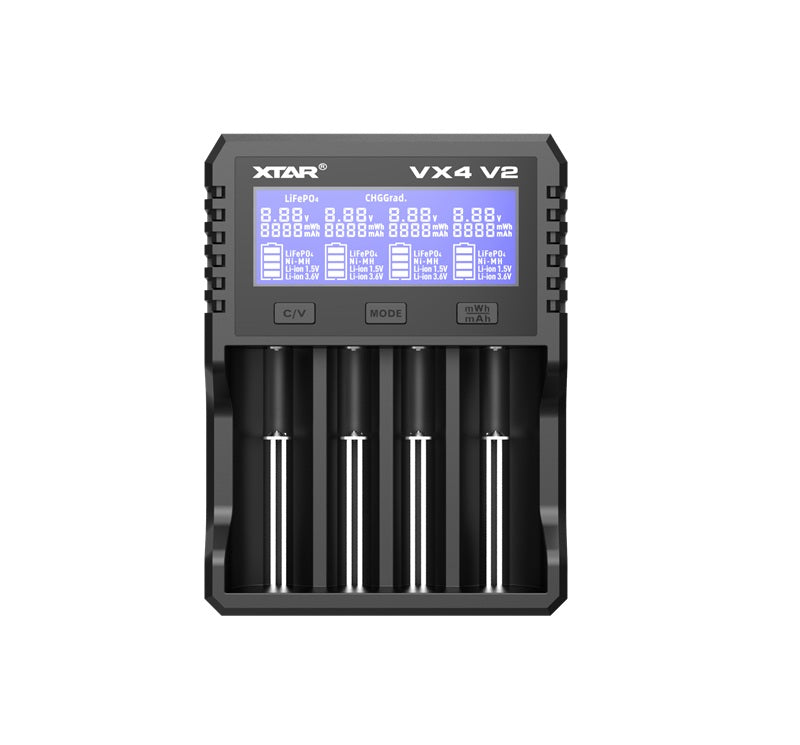

XTAR VX4 V2: The True 4-in-1 Hybrid Charger

The XTAR VX4 V2 (often hailed as the "Visis" edition) is the ultimate problem-solver for anyone who owns a drawer full of different battery types. While most chargers claim to be "universal," the VX4 V2 actually lives up to the name by adding dedicated support for the new industry-standard 1.5V Li-ion cells.

One Charger to Rule Every Chemistry.

Think of the VX4 V2 as the "Swiss Army Knife" of power management. It doesn’t just charge batteries; it analyzes, revives, and optimizes them. Whether you are using traditional Ni-MH AAs, high-performance 18650s, stable LiFePO4 cells, or the latest 1.5V Li-ion rechargeables, the VX4 V2 handles them all in one go—no separate chargers required.

Why the VX4 V2 Stands Out

  • The 1.5V Li-ion Specialist: Most "universal" chargers treat 1.5V Li-ion batteries like standard Ni-MH, which leads to incomplete charges. The VX4 V2 uses a dedicated charging protocol to ensure these cells reach their full potential safely.
  • Grading Mode (Capacity Testing): Stop wondering which batteries are "duds." In Grading mode, the charger performs a full charge-discharge-charge cycle to show you the real capacity ($mAh$ or $mWh$) of your cells.
  • USB-C PD 3.0 & QC 3.0 Input: No more bulky proprietary power bricks. Plug into any modern USB-C fast charger to unlock maximum speeds across all four slots.
  • Adjustable Current (2.0A Max): You’re in the driver’s seat. Manually select between 0.25A, 0.5A, 1.0A, or 2.0A to prioritize either battery longevity or high-speed turnaround.
  • Dual-Unit Display: View your battery’s energy in both Capacity ($mAh$) and Energy ($mWh$)—a must-have feature for accurately measuring 1.5V Li-ion performance.

Universal Compatibility

The VX4 V2 features extra-long independent slots (fitting batteries from 30mm to 75mm), making it compatible with almost everything on your shelf.

Battery Chemistry

Supported Sizes

1.5V Li-ion

AA, AAA

3.6V/3.7V Li-ion

10440 – 26650 (Including Protected 21700)

3.2V LiFePO4

14500, 16340, 18650, 21700, 26650

1.2V Ni-MH/Ni-CD

AAAA, AAA, AA, A, SC, C, D

Safety & Intelligence

  • Intelligent Identification: The VX4 V2 automatically detects battery chemistry and applies the optimal charging algorithm.
  • Internal Resistance (IR) Testing: Measures the "health" of your battery. High resistance? It might be time to recycle that cell.
  • 0V Activation: Revives over-discharged Li-ion batteries that other chargers would ignore.
  • Multiple Protections: Over-charge, over-discharge, short circuit, and reverse polarity protection come standard.

Technical Specifications

  • Input Power: USB-C (PD3.0 / QC3.0) 5V-3A / 9V-2A / 12V-1.5A
  • Constant Current: 2A × 2 / 1A × 4 / 0.5A × 4 / 0.25A × 4
  • Cut-off Voltage: $4.20 \pm 0.05V$ (Li-ion) / $3.65 \pm 0.05V$ (LiFePO4) / $1.45V$ (Ni-MH)
  • Discharge Current: 300mA / 500mA
  • Dimensions: 152mm x 121mm x 38mm

Meta Title & Description

Meta Title:

XTAR VX4 V2 Charger | 4-in-1 Smart LCD Tester for 1.5V Li-ion & LiFePO4

Meta Description:

The XTAR VX4 V2 is the ultimate 4-bay charger for 1.5V Li-ion, 3.7V Li-ion, Ni-MH, and LiFePO4 batteries. Features Grading Mode, IR testing, and USB-C PD fast charging.

Expert Tip: If you're using this for photography or high-end electronics, pay attention to the mWh reading during Grading mode. For 1.5V Li-ion batteries, milliwatt-hours ($mWh$) provide a much more accurate picture of total energy than standard $mAh$!
